Hyundai i-30: Engine Control System / Components and components location

Hyundai i30 (PD) 2018-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Components and components location

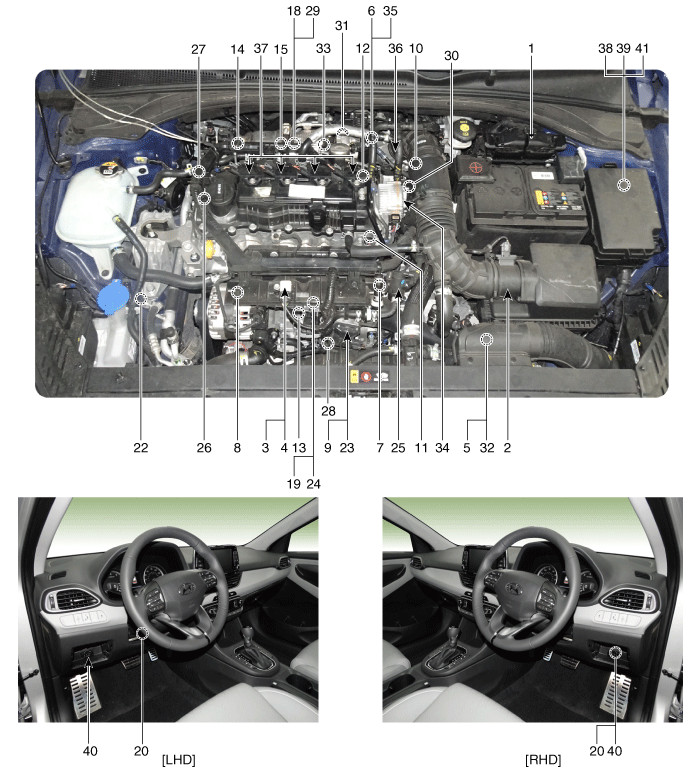

Components Location

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Manifold Absolute Pressure Sensor (MAPS)
4. Intake Air Temperature Sensor (IATS)
5. Boost Pressure Sensor (BPS)
6. EGR Pressure Sensor
7. Engine Coolant Temperature Sensor (ECTS) #1
8. Engine Coolant Temperature Sensor (ECTS) #2
9. Throttle Position Sensor (TPS) [integrated into ETC Module]
10. Crankshaft Position Sensor (CKPS)
11. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
12. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
13. Knock Sensor (KS)
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
16. Exhaust Gas Temperature Sensor (EGTS) #1 (Front) [GPF Type]
17. Exhaust Gas Temperature Sensor (EGTS) #2 (Rear) [GPF Type]
18. Exhaust Gas Temperature Sensor (EGTS)
19. Rail Pressure Sensor (RPS)
20. Accelerator Position Sessor (APS)
21. Ambient Temperature Sensor (ATS)
22. A/C Pressure Transducer (APT)
23. ETC Motor [integrated into ETC Module]
24. Injector
25. Purge Control Solenoid Valve (PCSV)
26. Variable Force Solenoid (VFS) [Bank 1 / Intake]
27. Variable Force Solenoid (VFS) [Bank 1 / Exhaust]
28. Oil Pressure & Temperature Sensors (OPTS)
29. Electric EGR Control Valve
30. Thermal Management Module (TMM) Motor
31. Electric Waste Gate Actuator (EWGA)
32. RCV Control Solenoid Valve
33. Fuel Pressure Control Valve (FPCV)
34. Continuous Variable Valve Duration (CVVD) Actuator

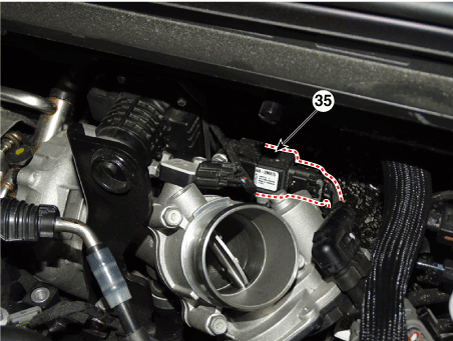

35. Differential Pressure Sensor (DPS)

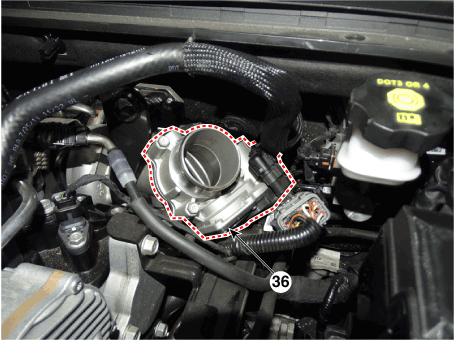

36. Differential Pressure Valve (DPV)
37. Ignition Coil
38. Main Relay
39. Fuel Pump Relay
40. Data Link Connector (DLC) [16-Pin]
41. Multi-Purpose Connector [6-pin]

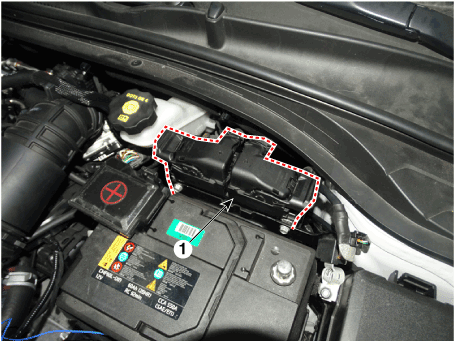

1. ECM (Engine Control Module)

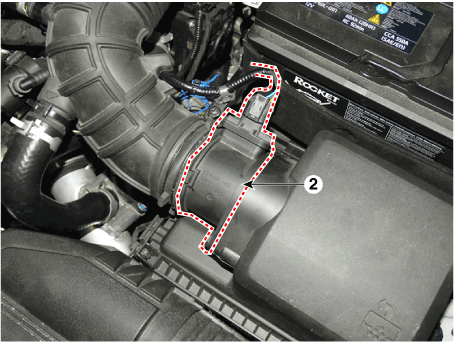

2. Mass Air Flow Sensor (MAFS)

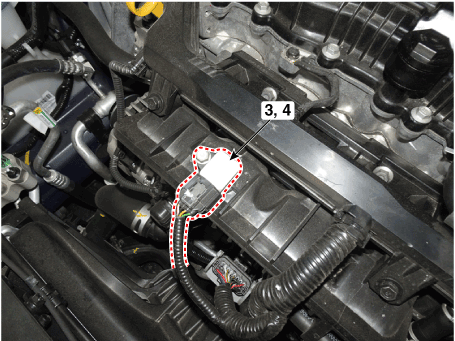

3. Manifold Absolute Pressure Sensor (MAPS)
4. Intake Air Temperature Sensor (IATS)

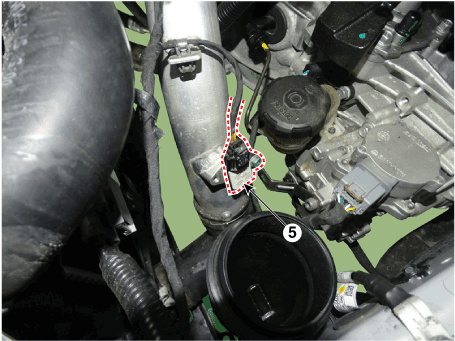

5. Boost Pressure Sensor (BPS)

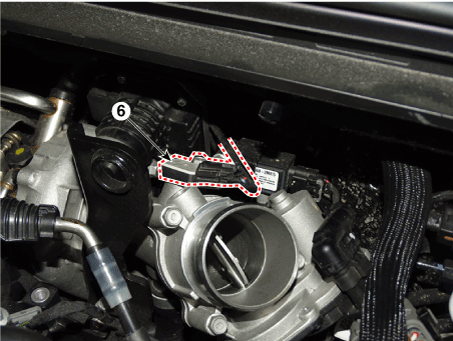

6. EGR Pressure Sensor

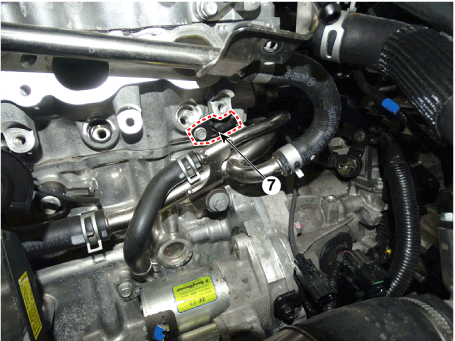

7. Engine Coolant Temperature Sensor (ECTS) #1

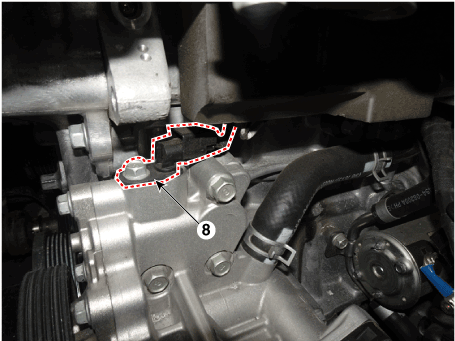

8. Engine Coolant Temperature Sensor (ECTS) #2

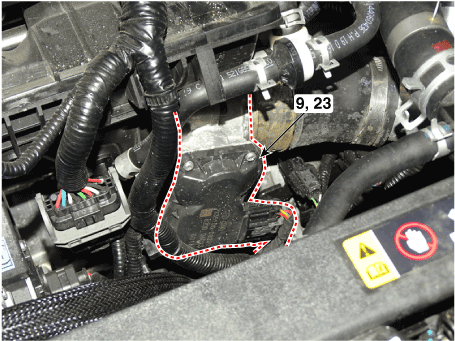

9. Throttle Position Sensor (TPS) [integrated into ETC Module]
23. ETC Motor [integrated into ETC Module]

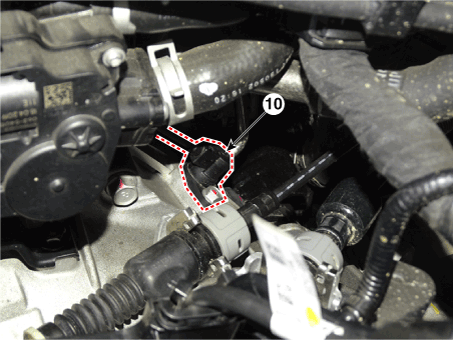

10. Crankshaft Position Sensor (CKPS)
11. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

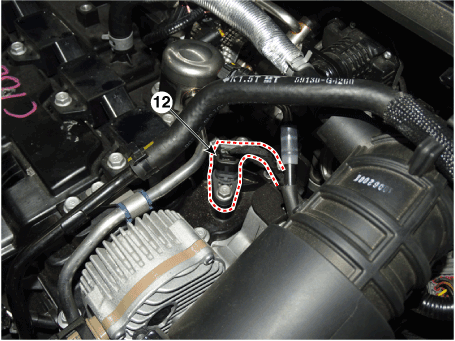

12. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

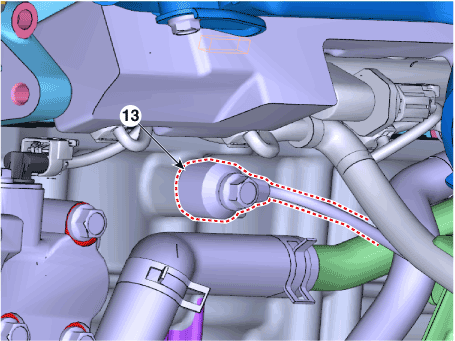

13. Knock Sensor (KS)

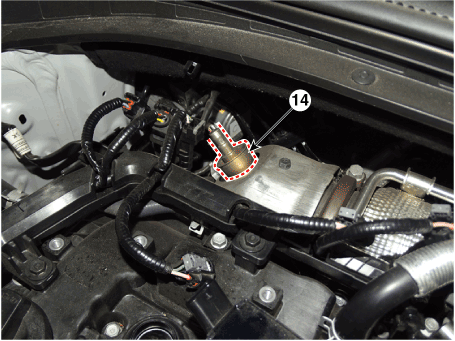

14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

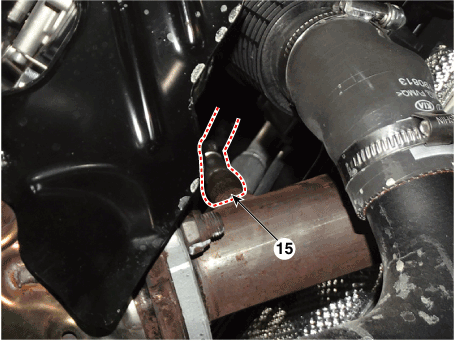

15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

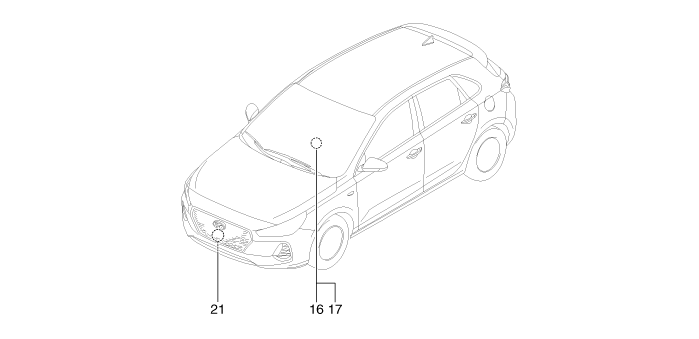

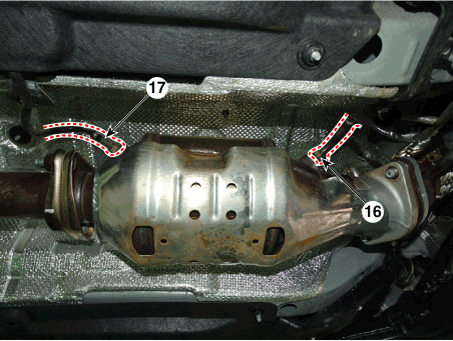

16. Exhaust Gas Temperature Sensor (EGTS) #1 (Front) [GPF Type]
17. Exhaust Gas Temperature Sensor (EGTS) #2 (Rear) [GPF Type]

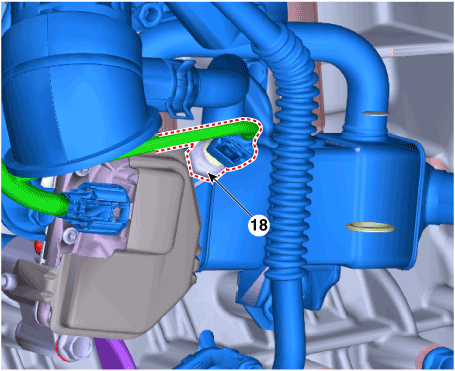

18. Exhaust Gas Temperature Sensor (EGTS)

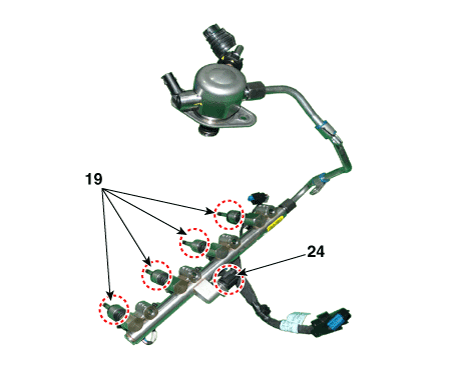

19. Rail Pressure Sensor (RPS)
24. Injector

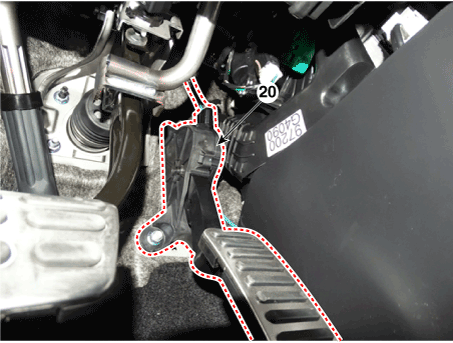

20. Accelerator Position Sessor (APS)

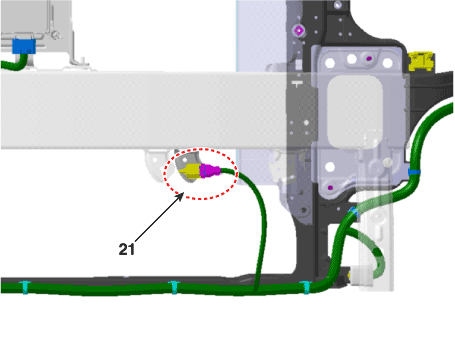

21. Ambient Temperature Sensor (ATS)

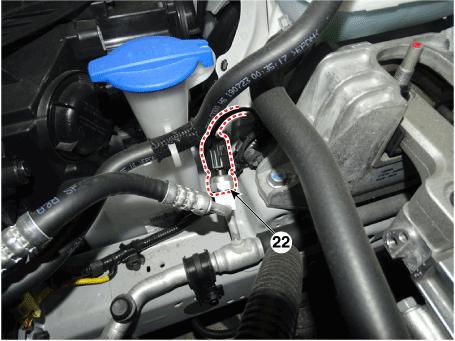

22. A/C Pressure Transducer (APT)

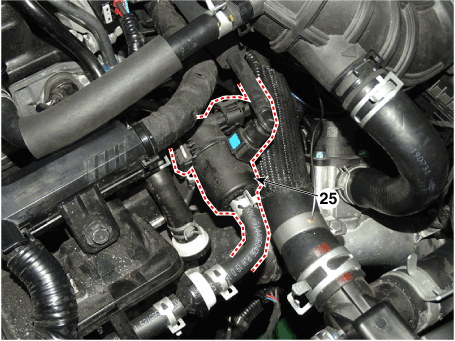

25. Purge Control Solenoid Valve (PCSV)

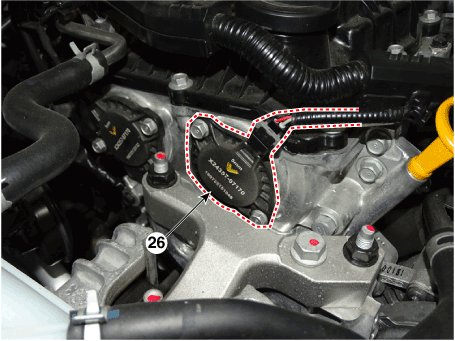

26. Variable Force Solenoid (VFS) [Bank 1 / Intake]

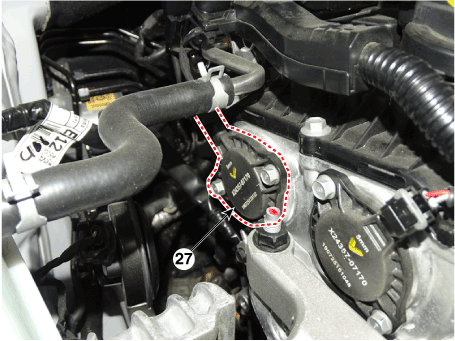

27. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

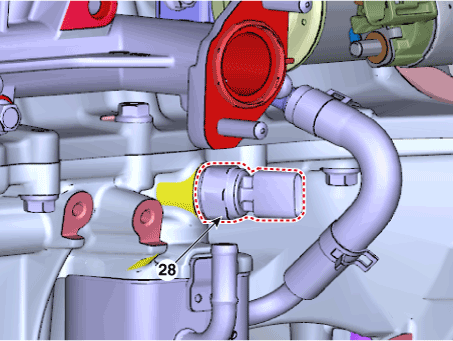

28. Oil Pressure & Temperature Sensors (OPTS)

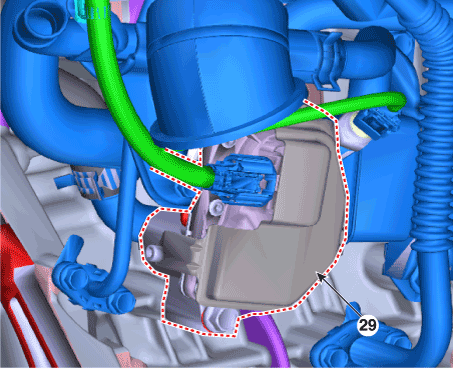

29. Electric EGR Control Valve

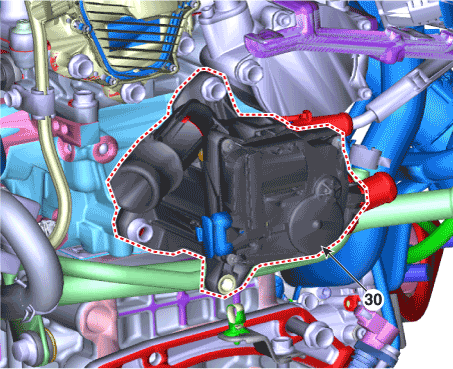

30. Thermal Management Module (TMM) Motor

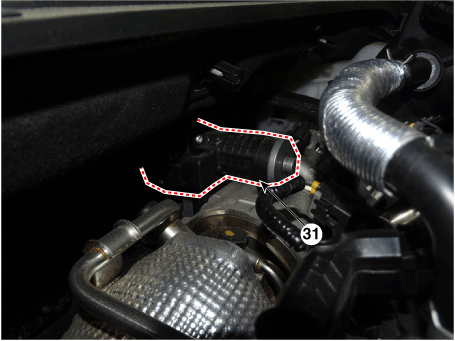

31. Electric Waste Gate Actuator (EWGA)

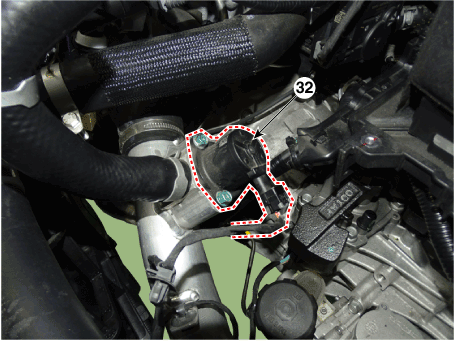

32. RCV Control Solenoid Valve

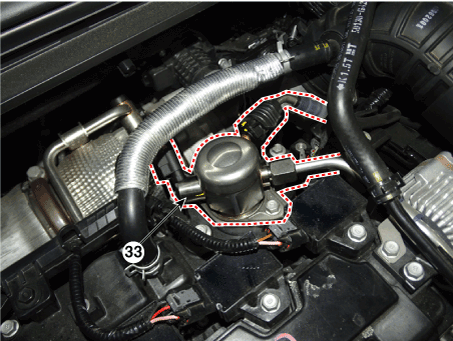

33. Fuel Pressure Control Valve (FPCV)

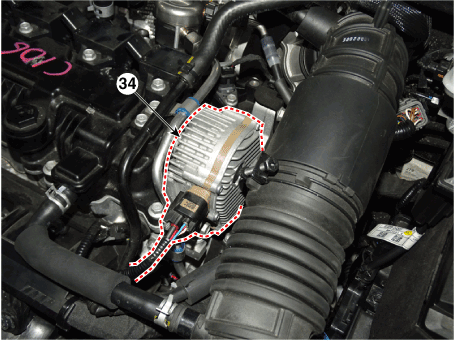

34. Continuous Variable Valve Duration (CVVD) Actuator

35. Differential Pressure Sensor (DPS)
36. Differential Pressure Valve (DPV)

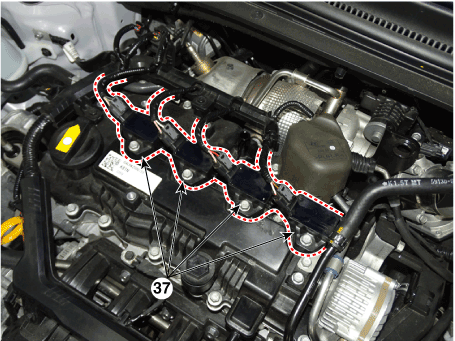

37. Ignition Coil

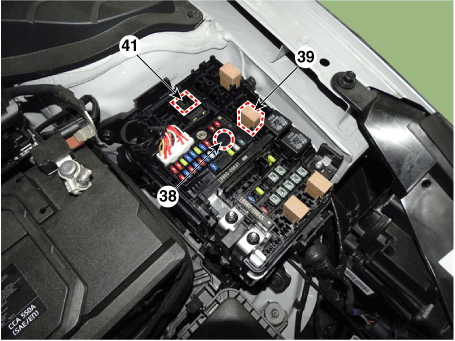

38. Main Relay
39. Fuel Pump Relay
41. Multi-Purpose Connector [6-pin]

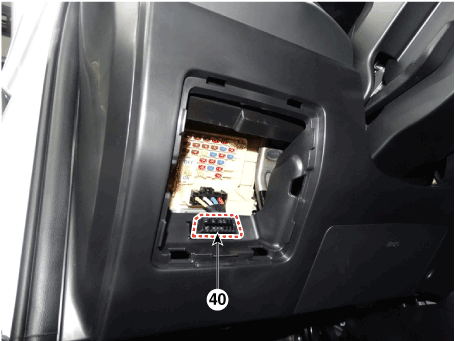

40. Data Link Connector (DLC) [16-Pin]
