Hyundai i-30: Button Engine Start System / Start/Stop Button

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button

Components and components location

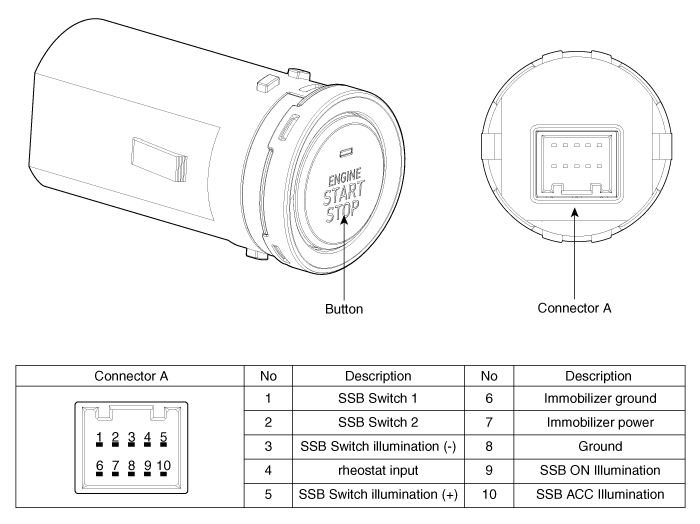

Component

Repair procedures

Removal

1.	Disconnect the negative(-) battery terminal.

2.	Remove the crash pad side ganish (RH). (Refer to Body - "Glove Box Upper Cover Assembly" )

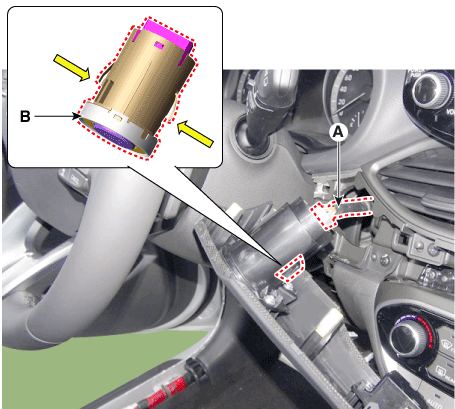

3.	Remove the start/stop button(B) after disconnecting the start/stop button connector (A).

Installation

1.	Install the start / stop button.

2.	Remove the crash pad side ganish (RH).

3.	Connect the negative (-) battery terminal.
