Hyundai i-30: Fuel Delivery System / Fuel Line

Hyundai i30 (PD) 2018-2023 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Line

Repair procedures
Removal
1.
Turn the ignition switch OFF and disconnect the battery (-) terminal.
2.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
3.

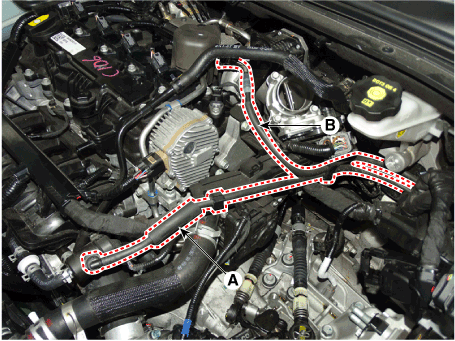

Disconnect the vapor tube quick-connector (A) which is connected from the PCSV.
4.
Disconnect the fuel feed tube quick-connector (B).

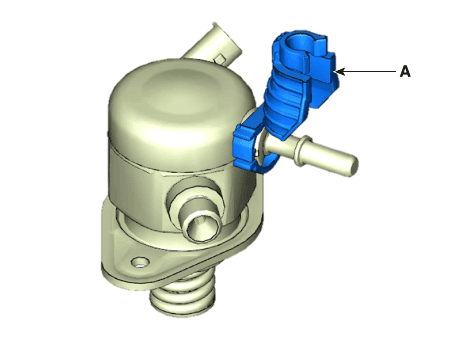

Open the clamp cover (A) before disconnecting the quick connector (if the clip is applied).

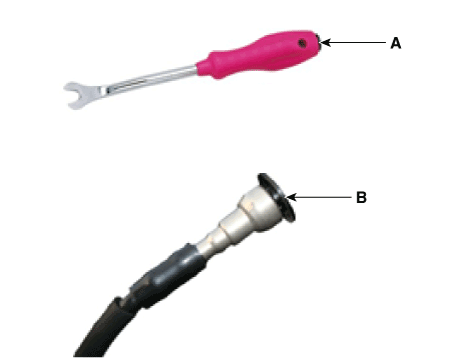

When removing the quick-connector by using a clip removing tool (A), be careful not to damage the plastic clip (B).
If the clip is damaged, fuel line leakage may occur due to poor connection.

5.
Remove the fuel tank.
(Refer to Fuel Delivery System - "Fuel Tank")
6.

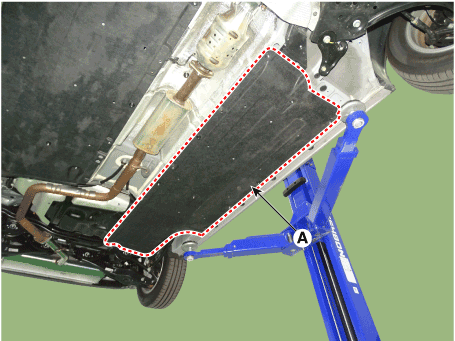

Remove the floor under cover (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

7.

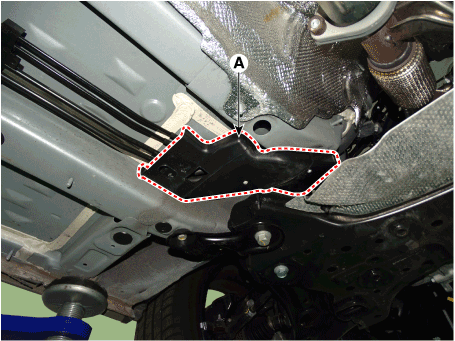

Remove the fuel line and brake line protector (A).

8.

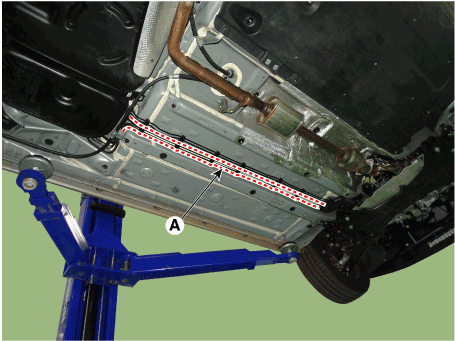

Remove the fuel line (A).

Installation
1.
Install in the reverse order of removal.
