Hyundai i-30: Lubrication System / Oil Pressure Control Solenoid Valve

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Mechanical System / Lubrication System / Oil Pressure Control Solenoid Valve

Repair procedures
Removal
1.
Disconnect the negative battery terminal.
2.

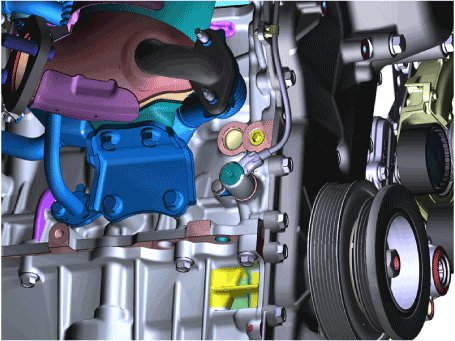

Disconnect the oil pressure control solenoid valve wiring, and then remove the oil pressure control solenoid valve (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)


When installing, apply engine oil to the O-ring.
3.
Install in the reverse order of removal.
